手把手教你MyEclipse UML建模(下)

1. Modeling with UML2

MyEclipse provides the following UML 2 features:

  • UML 2 Diagrams: Class, Component, Deployment, Composite Structures, Use-case, Activity, Sequence, State Machine, Profile
  • Integrated Diagram Editor, Outline view, and Properties view
  • UML perspective
  • Direct edit of Node via Hot-Zones
  • Diagrams stored in UML2 model diagram (.umldi) file
  • No restriction on location or project type that might contain UML model files
  • Generate Java code from models
  • Export models as XMI 1.0 format
  • Export diagrams in image format: GIF, PNG, PS, EPS, SVG
  • Reverse-engineer class diagrams from any MyEclipse JEE project or Eclipse Java project
    • Batch process reverse-engineer any combination of project, source-folder, Java package or individual class
    • Drag-n-drop any Java class or interface from the Package Explorer view onto any UML class diagram
  • Drag-n-drop any UML artifact from the Outline view onto any compatible UML diagram
  • Auto-layout option for class diagram

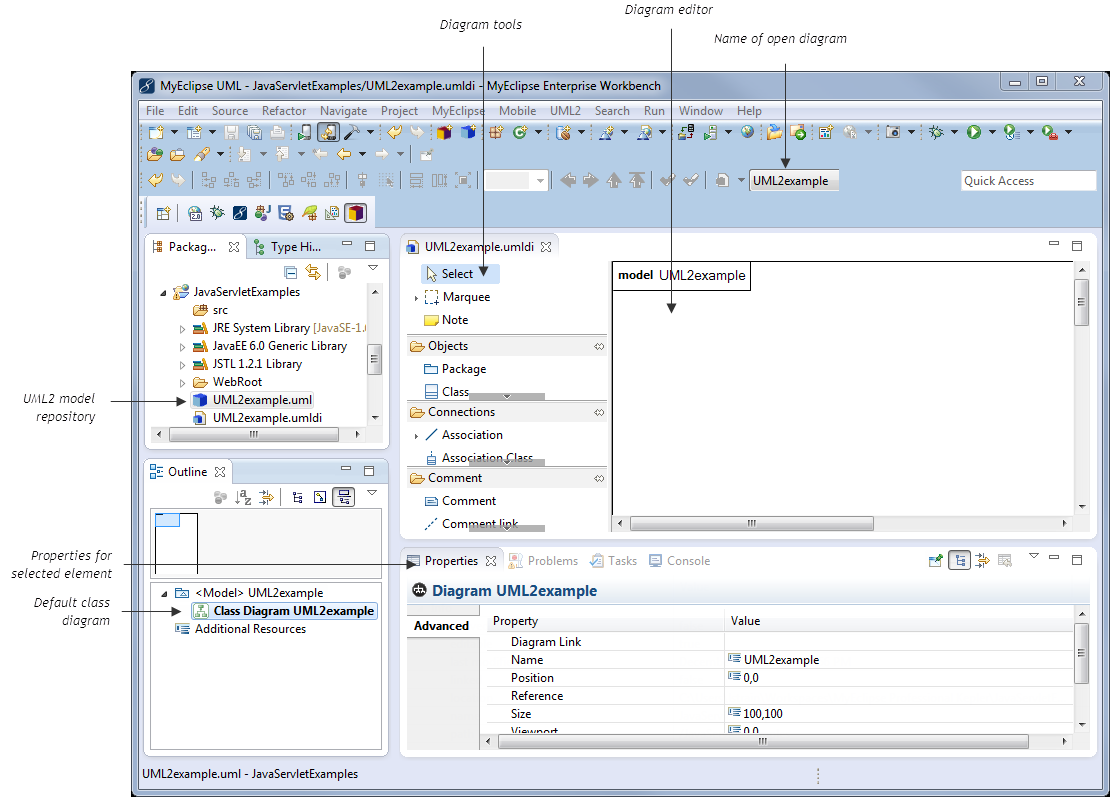

UML Perspective

The MyEclipse UML perspective provides a workbench organization tailored to activities of the modeling process. Default views include the UML Diagram editor, Outline view, and custom Properties view. Toolbar actions are added to make new diagram creation quick and simple. When you create a new UML model in a project, you are prompted to open the UML perspective.

MyEclipse UML
UML perspective


2. UML2 Graphical Diagram Editor

The UML 2 editor allows you to create and edit nine different types of UML 2 diagrams.

MyEclipse UML
List of UML 2 diagram types

MyEclipse UML
Class diagram

MyEclipse UML

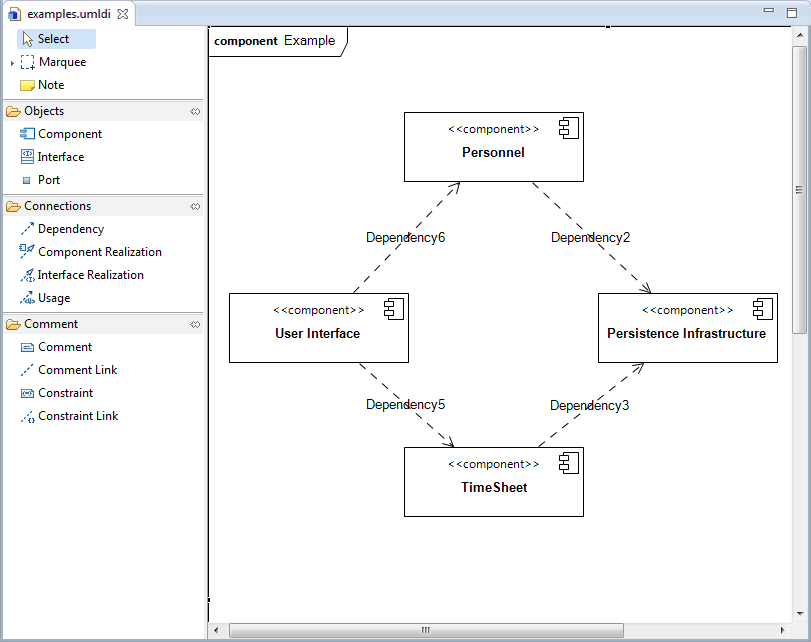

Component diagram

MyEclipse UML

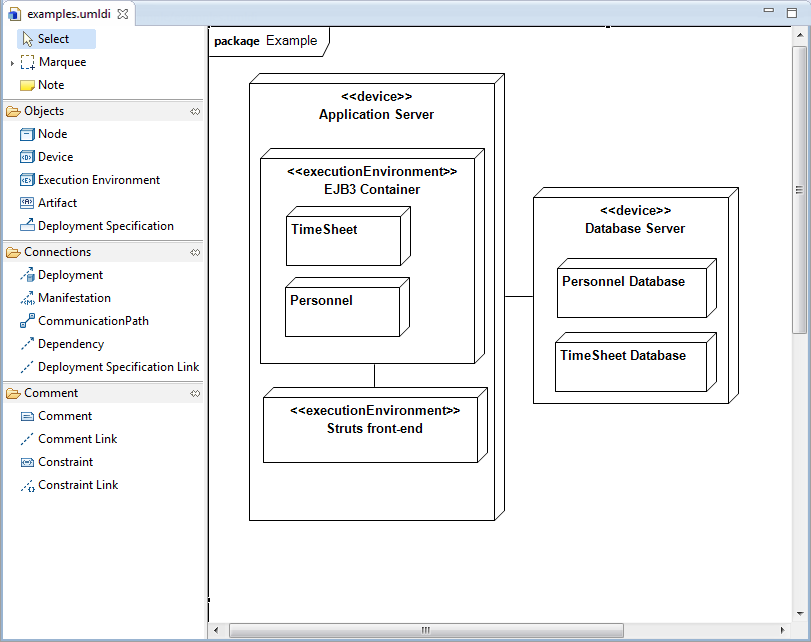

Deployment diagram

MyEclipse UML

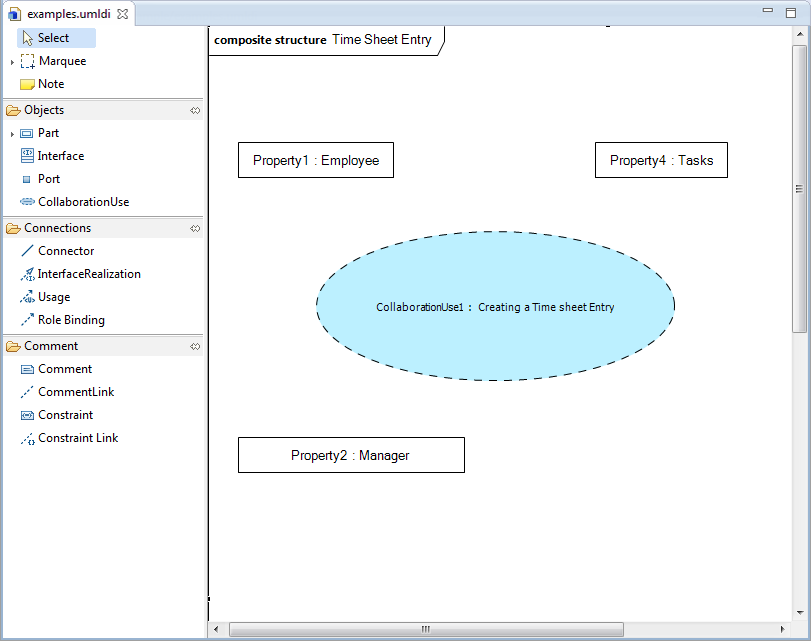

Composite Structure diagram

MyEclipse UML

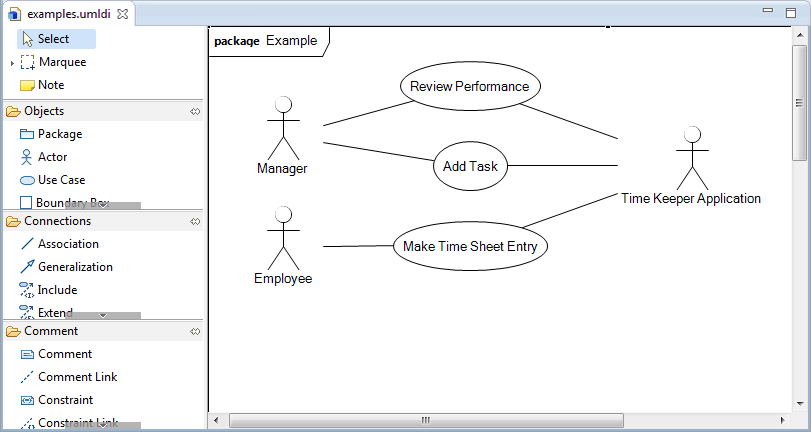

Use Case diagram

MyEclipse UML

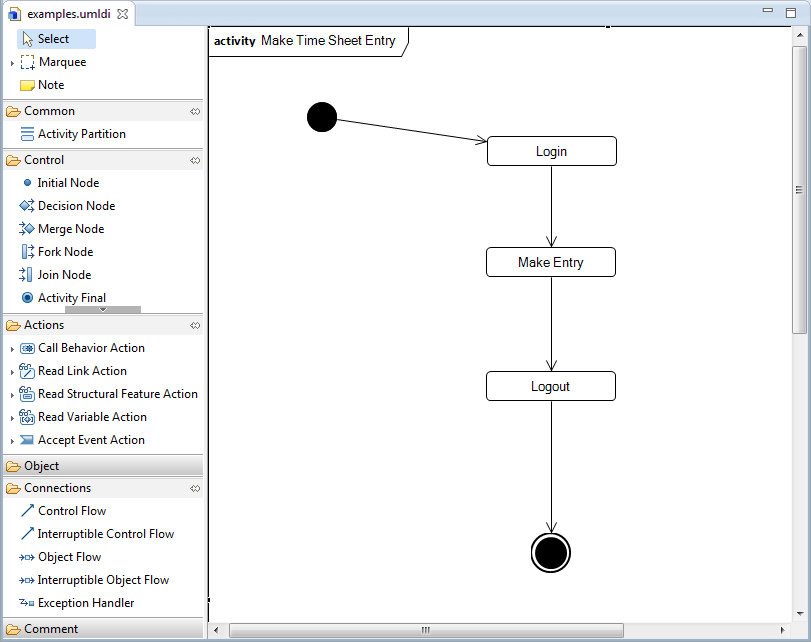

Activity diagram

MyEclipse UML

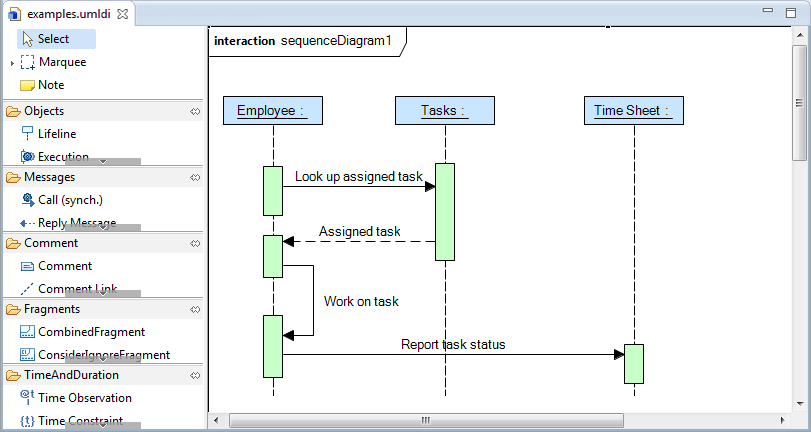

Sequence diagram

MyEclipse UML

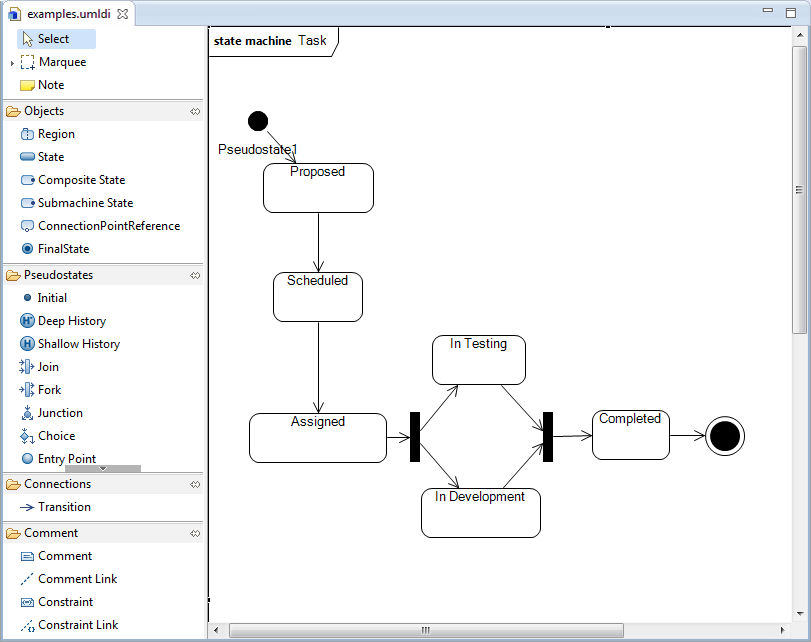

State Machine diagram

MyEclipse UML

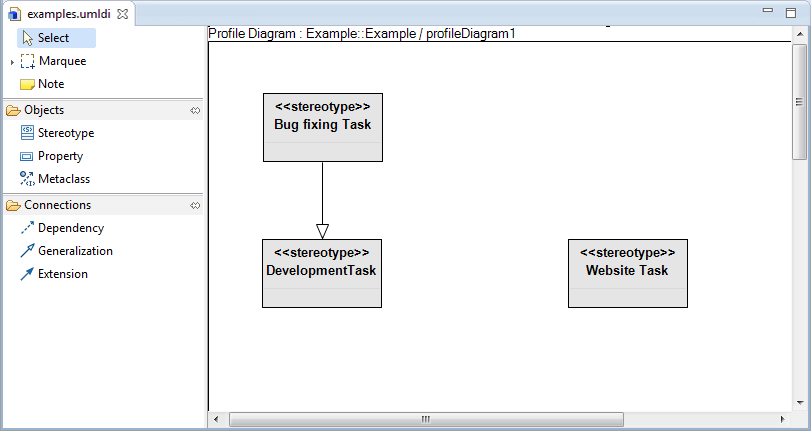

Profile diagram

3. Outline View

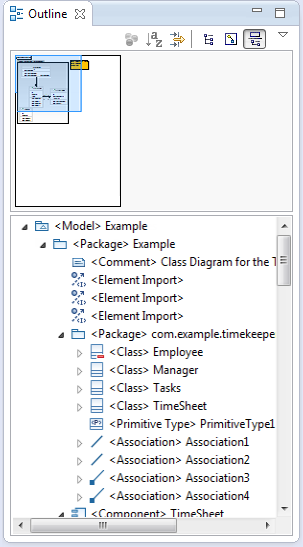

Use the outline view to easily navigate the diagram, graphically or structurally.

MyEclipse UML
Outline view

Selecting an existing element allows you to further modify it in a tabbed property view. A few properties are shown below.

MyEclipse UML

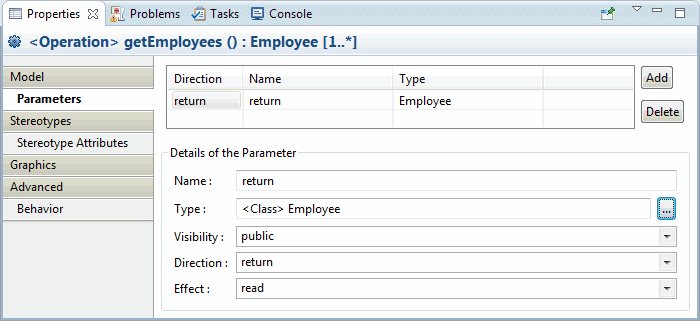

Parameter properties

MyEclipse UML

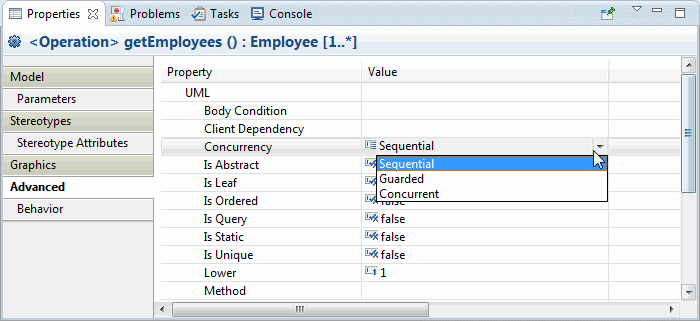

Advanced properties

The UML 2 editor toolbar contains all the features you need to create visually appealing diagrams.

MyEclipse UML
UML 2 editor tools

To automatically layout class diagrams, select UML2>Auto Layout from the menu.

MyEclipse UML
Auto layout of class and use-case diagrams

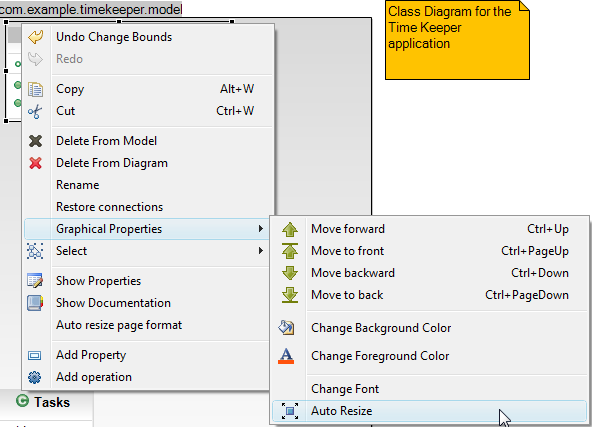

Further control is possible through an element’s right-click context menu and the Graphics tab in the Properties view.

MyEclipse UML
Selecting element graphical properties

MyEclipse UML

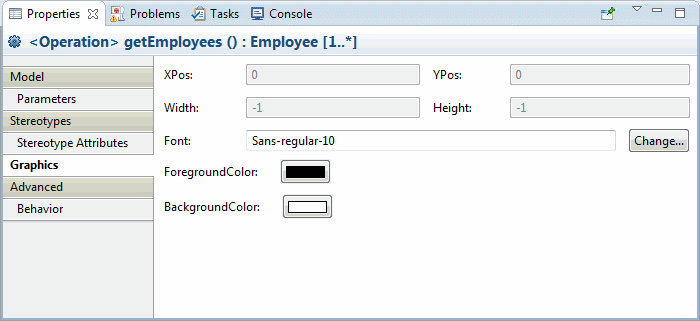

Graphics Property tab

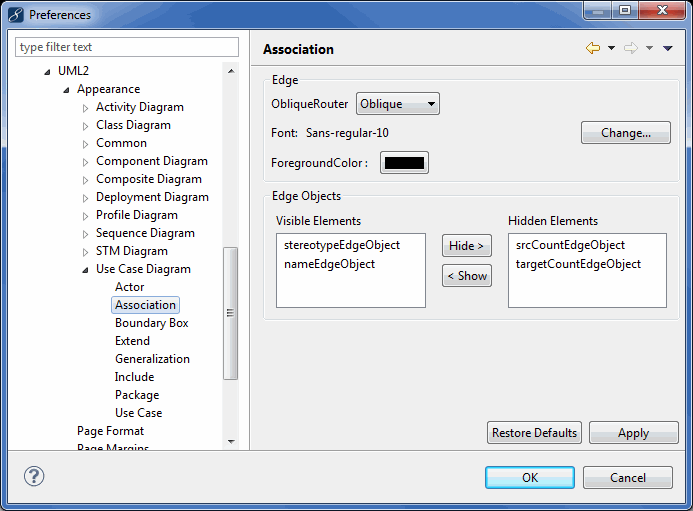

Use the UML 2 preferences to specify the default styling for UML 2 entities.

MyEclipse UML
UML 2 preferences


4. Getting Started with UML2 Models and Diagrams

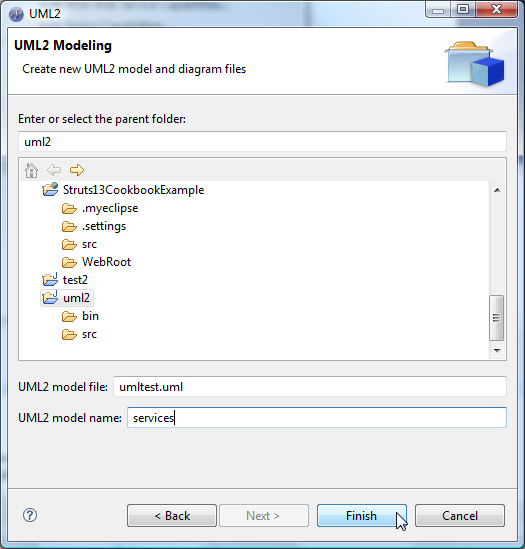

Click the UML2  icon to create a new UML2 model and  diagram file. Alternatively, you can select File>New>Other from the menu, expand MyEclipse>UML, and select UML2 Model.

Creating a new UML2 model

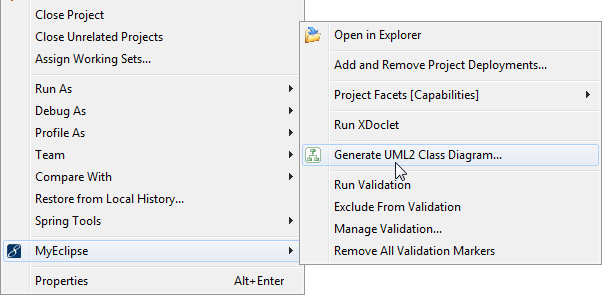

To reverse engineer an existing Java project into a UML2 model and class diagram, right-click the project and select MyEclipse>Generate UML2 Class Diagram from the menu.

Reverse engineering a project into a UML2 model and class diagram

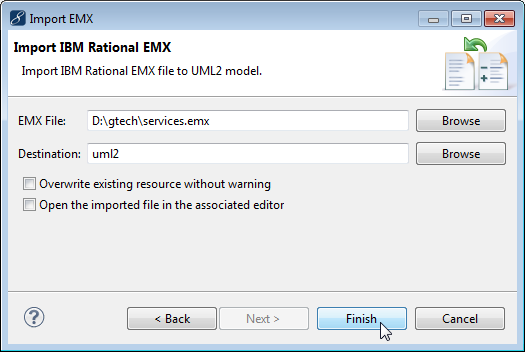

You can also import a Rational EMX file by selecting File>Import from the menu, expanding UML2, and selecting Rational EMX File.

Importing a Rational EMX file

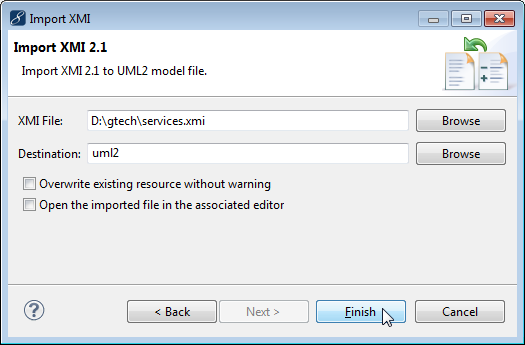

XMI files can be imported to give you a UML2 model file. Select File>Import from the menu, expand UML2, and select XMI 2.1.

Importing XMI 2.1 file


5. Generating Code & Other Resources

Generating Java

Select UML2>Generate Java from the menu to generate Java into your current project.

Generating Java

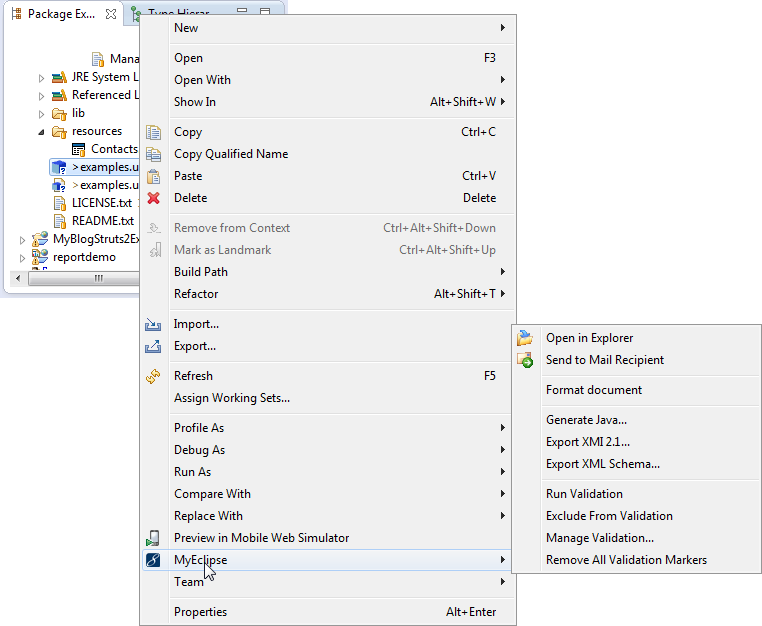

Generation actions are also available from the right-click context menu of a UML model (.uml) file.

Right-click context menu of a model file

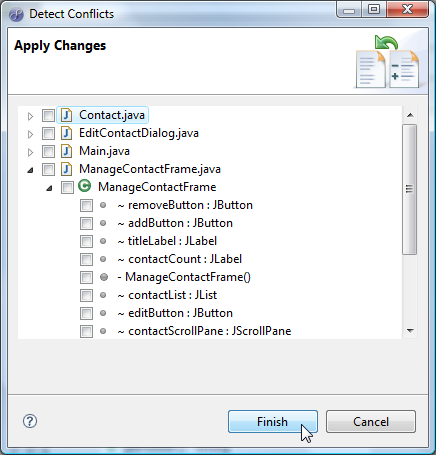

You might be prompted for details on how specific changes should be merged with your existing code base.


Merging conflicts with code base

Exporting an XML Schema (XSD) files

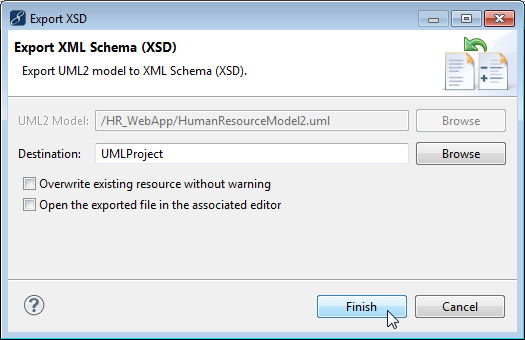

Select UML2>Export XML Schema from the menu to generate an XSD file corresponding to the selected UML2 model.

Exporting an XML schema

Exporting XMI files

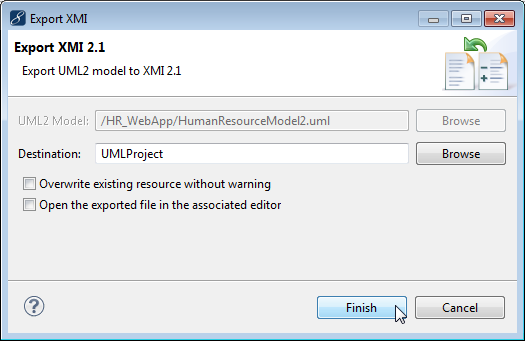

Select UML2>Export XMI 2.1 from the menu to create an XMI file from a given UML2 model

Exporting a model to an XMI file
